The AID Methodology

A Complete Methodology for AI Integrated Software Development

Version 3.2 — June 2026

---

Table of Contents

1. The Pipeline
2. Philosophy
3. The Knowledge Base
4. The Phases
5. The Agent Model
6. Feedback Loops
7. Artifacts Reference
8. Case Studies
9. Comparison with SDD
10. Adoption Guide

---

1. The Pipeline

flowchart TB
    classDef prep    fill:#1E3A8A,stroke:#1E3A8A,color:#ffffff
    classDef def     fill:#6D28D9,stroke:#6D28D9,color:#ffffff
    classDef map     fill:#0F766E,stroke:#0F766E,color:#ffffff
    classDef exe     fill:#166534,stroke:#166534,color:#ffffff
    classDef delopt  fill:#C2410C,stroke:#C2410C,color:#ffffff,stroke-dasharray:5 4
    classDef aux     fill:#E5E7EB,stroke:#9CA3AF,color:#1F2937,stroke-dasharray:4 3
    classDef offpipe fill:#374151,stroke:#374151,color:#ffffff,stroke-dasharray:6 4

    subgraph G1[" 1 · Prepare "]
        Init["aid-config<br/>setup · once"]:::aux
        Disc["1 · aid-discover<br/>brownfield"]:::prep
        Sum["aid-summarize<br/>optional"]:::aux
    end
    subgraph G2[" 2 · Define "]
        Intv["2 · aid-interview<br/>gather requirements"]:::def
        Triage{"TRIAGE<br/>full or lite?"}:::def
        Spec["3 · aid-specify<br/>full path only"]:::def
    end
    subgraph G3[" 3 · Map "]
        Plan["4 · aid-plan<br/>full path only"]:::map
        Det["5 · aid-detail<br/>full path only"]:::map
    end
    subgraph G4[" 4 · Execute "]
        Exe["6 · aid-execute<br/>8 task types · graded loop"]:::exe
    end
    subgraph G5[" 5 · Deliver (optional) "]
        Dep["aid-deploy"]:::delopt
        Mon["aid-monitor"]:::delopt
    end

    HK["aid-housekeep<br/>on-demand · off-pipeline<br/>KB-DELTA · SUMMARY · CLEANUP"]:::offpipe

    Init --> Disc --> Intv --> Triage
    Triage -- "full path<br/>broad / multi-target" --> Spec --> Plan --> Det --> Exe
    Triage -- "lite path<br/>small, single-target" --> Exe
    Exe -. "on demand" .-> Dep
    Exe -. "on demand" .-> Mon
    Exe -. "when finished" .-> HK
    Mon -. "bugs → LITE-BUG-FIX" .-> Intv
    Mon -. "change requests" .-> Intv
    HK  -. "targeted KB refresh" .-> Disc

Eleven user-facing skills, five groups. The six numbered phases (Discover through Execute) form the mandatory sequential pipeline — brownfield enters at Discover, greenfield at Interview. /aid-interview’s TRIAGE routes small work to the lite path automatically. Deploy and Monitor are optional end-of-pipeline Deliver skills. aid-housekeep runs off the pipeline on demand for KB maintenance.

The Full Path

Brownfield projects enter at Discover and proceed through every numbered phase: Discover → Interview → Specify → Plan → Detail → Execute. Each phase is gated — the human approves the output before the next phase begins. The pipeline never auto-advances.

Greenfield projects skip Discover (no existing system to understand) and enter at Interview. A minimal Knowledge Base is populated from interview answers during the full-path flow.

The Lite Path at a Glance

When the work is small and well-scoped, TRIAGE (the opening state of every Interview) routes it directly to a condensed flow that skips Specify, Plan, and Detail. The lite path is not a fallback — it is the default for the majority of individual tasks. See §4, Interview → TRIAGE Routing, for the decision logic and full walkthrough.

Skill Inventory

All 11 user-facing skills, their groups, phase numbers, and mandatory pipeline membership.

Skill	Group	Phase	Mandatory pipeline?
aid-config	Prepare	— (bootstrap)	Run once before pipeline; not a numbered phase
aid-discover	Prepare	1	Mandatory for brownfield; skipped for greenfield
aid-summarize	Prepare	— (optional viewer)	On demand; not a numbered phase
aid-interview	Define	2	Yes — TRIAGE routes to full or lite
aid-specify	Define	3	Full path only
aid-plan	Map	4	Full path only
aid-detail	Map	5	Full path only
aid-execute	Execute	6	Yes
aid-deploy	Deliver	— (optional)	On demand; not a numbered phase
aid-monitor	Deliver	— (optional)	On demand; not a numbered phase
aid-housekeep	Off-pipeline	—	On demand; off the pipeline entirely

---

2. Philosophy

Waterfall + AI — and That Is the Point

Understand → Specify → Plan → Build → Verify → Ship.

This is the Waterfall sequence. AID embraces it deliberately.

Waterfall failed not because the sequence was wrong, but because humans couldn’t execute it fast enough to afford iteration. When discovery takes weeks and specs take days, going back to fix a wrong assumption costs a sprint. Teams learned to skip forward, hack around problems, and call it “agile.”

AI changes the economics:

• Discovery that took weeks takes hours. An agent can scan a 21 GB codebase, map its architecture, catalog its conventions, and produce a structured Knowledge Base in a single session.
• Specification that took days takes minutes. With a Knowledge Base as context, generating a grounded spec is a single prompt, not a week of meetings.
• Iteration is cheap. Feedback loops cost tokens, not sprints. Going back to Discovery to fill a knowledge gap costs pennies, not calendar weeks.
• Documents don’t rot. The same agents that write code maintain the Knowledge Base and specs. Keeping them current is nearly free when the overhead is tokens rather than meeting time.

Agile was the right answer to Waterfall’s execution problem. AI is the right answer to Agile’s rigor problem. AID is Waterfall with AI execution and formal feedback loops — the methodology that finally works because the bottleneck shifted from “humans are slow” to “humans set direction.”

This is not anti-Agile. Sprints, backlogs, and retrospectives can coexist with AID phases. What AID replaces is the missing structure inside Agile iterations — the skip from “good idea” straight to implementation because discovery and specification felt too slow to be worth doing.

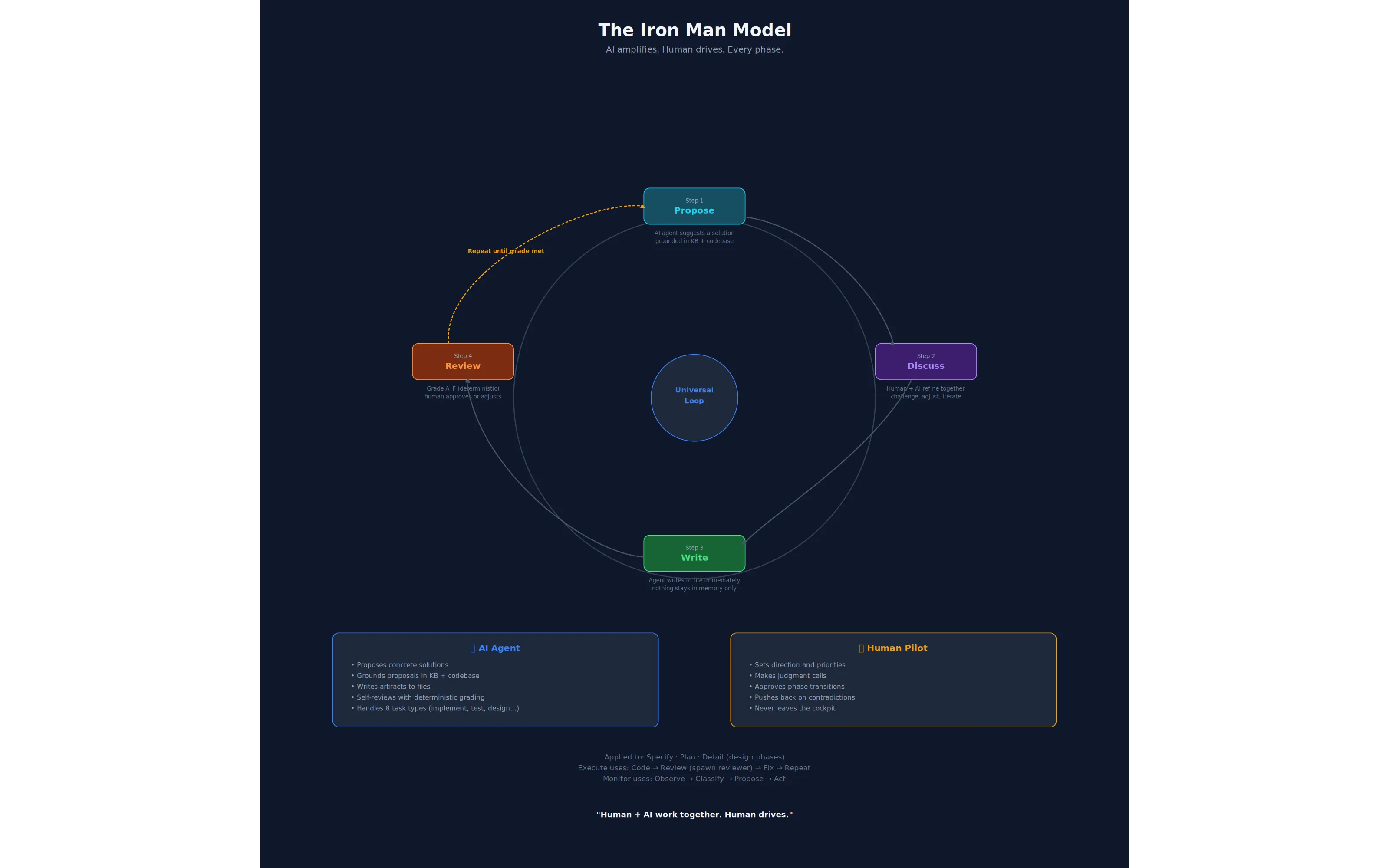

The Iron Man Model: Human-in-the-Middle

The Iron Man Model. Every design phase on the full path follows the same loop: AI proposes (grounded in KB and codebase), human and AI discuss, AI writes, AI reviews — and the loop repeats until the output meets the bar. Human approves advancement. Human never leaves the cockpit.

Every phase is co-executed by human and AI. Not “AI executes, human rubber-stamps.” Not “human does the thinking, AI does the typing.” The human and AI work together within each phase, with the AI amplifying the human’s capabilities.

Between phases, the human gives the OK to advance. The pipeline never auto-advances. The human reviews the phase output, decides whether it is good enough, and greenlights the next phase. This is the checkpoint that keeps the human in control without slowing the work to human speed.

A note on universality. The Propose → Discuss → Write → Review loop is universal across the full path — Specify, Plan, Detail, and Execute each follow it. The lite path is different: Interview runs a condensed CONDENSED-INTAKE slot-fill rather than the full 4-step loop, and TASK-BREAKDOWN proposes the task set directly from the slot-filled SPEC. The Iron Man loop shapes every full-path phase; the lite path is a faster, narrower variant designed for proportionate scope.

Three Core Principles

1. Knowledge Before Specification

Every methodology tells you to “write good specs.” None tells you how to understand a system well enough to write them. AID does. The Discovery phase produces a Knowledge Base — a structured collection of documents covering architecture, conventions, data models, integrations, tech debt, and domain language. The spec is then written against this knowledge, not from imagination.

The contrast with greenfield projects is instructive. On greenfield, you skip Discovery — there is no existing system to understand. But you still populate a minimal Knowledge Base from the interview. Even for new projects, understanding precedes specification: understanding the domain, the users, the constraints, the technology choices.

2. Specs Are Living Documents

A spec written before implementation is a hypothesis. A spec revised after implementation is knowledge. AID treats specs as living artifacts with formal revision protocols. Every change is tracked, justified, and approved. This is not chaos — it is controlled evolution with a full audit trail.

This matters enormously in brownfield projects. The codebase was built by people who are no longer here, against requirements that have since changed, using patterns that were conventional five years ago. Any spec you write will be partially wrong. The question is not whether you will revise — it is whether you will do so formally (with a traceable revision history) or informally (with silent workarounds and hidden debt).

3. Feedback Over Forward-Only

The pipeline is sequential by default, but any phase can trigger upstream revision through structured protocols. Discovery can be re-entered from any phase. Specs can be revised during planning. Tasks can be amended during implementation. The revision trail provides audit transparency while keeping the project moving.

AID defines eleven named feedback loops (see §6). The loops are not a failure mode — they are the design. The pipeline is sequential because that is the right default; the loops are formal because reality is not sequential.

What AID Removes

Hand a capable coding agent a vague task and a large repository, and you get predictable failure modes. AID removes each one structurally — through process, not prompt-tuning.

Failure mode	What it looks like	How AID removes it
Knowledge gaps	The agent doesn’t understand the existing system and invents how it works.	Discovery builds the Knowledge Base before any spec is written. Understanding precedes specification.
Hallucination	The agent states things about the code that aren’t true.	Every KB claim carries an inline path:line citation — facts are anchored to source, not guessed.
Drift	The implementation quietly diverges from intent; the spec rots.	Spec-as-hypothesis plus eleven formal feedback loops — upstream artifacts are revised with a traceable history, never silently worked around.
Overengineering	The agent adds abstractions, options, and scope nobody asked for.	Typed, PR-sized tasks with explicit acceptance criteria; the reviewer grades against the spec, not against taste.
Oversights	Bugs, missed edge cases, and untested paths slip through.	A separate adversarial reviewer — the agent that writes never grades its own work — loops until the grade clears the bar.
Context exhaustion	Loading the whole repository into the context window — slow, costly, lossy.	A 3-tier context economy (see §3, Context Feeding Strategy): an always-loaded index, then one KB document on demand, then an exact path:line.

Honest Assessment

AID is not a silver bullet. It is a deliberate trade-off.

AID wins	AID is heavier
Brownfield projects with accumulated complexity and missing documentation	Pure greenfield MVPs where the risk of knowledge gaps is low and the cost of discovery is real
Regulated environments where audit trails and traceability are requirements, not niceties	Teams with deep existing knowledge of the codebase who would be documenting what they already know
Long-running projects where institutional memory loss is a real cost	When “move fast and break things” is the genuine strategy and its costs are accepted
Teams new to AI-assisted development who need process guardrails to avoid the failure modes listed above	—
Situations where “move fast and break things” has already produced a pile of broken things	—

The routing insight: AID does not make you weigh the cost of its full pipeline against the value of a change. That weighing is automated. TRIAGE — the opening state of every /aid-interview — routes work to the correct path from the first question. Small work takes the lite path by default. The full pipeline runs only when scope warrants it. You don’t configure this; you describe the work in your own words and the methodology routes you.

The honest cost: AID adds process on the full path. Discovery takes time. Interview takes time. Specify, Plan, and Detail add overhead before a single line of code is written. The payoff is that what gets written is the right code, grounded in real understanding, with a spec that won’t surprise you mid-implementation. The cost is real; so is the payoff. For small work, TRIAGE ensures the cost is commensurate with scope.

---

3. The Knowledge Base

flowchart TD
    classDef kb   fill:#0B1F3A,stroke:#0B1F3A,color:#ffffff
    classDef std  fill:#1D4ED8,stroke:#1D4ED8,color:#ffffff
    classDef meta fill:#7C3AED,stroke:#7C3AED,color:#ffffff
    classDef gen  fill:#166534,stroke:#166534,color:#ffffff
    classDef ext  fill:#B45309,stroke:#B45309,color:#ffffff,stroke-dasharray:5 4

    KB["Knowledge Base<br/>.aid/knowledge/"]:::kb
    KB --> STD["14 standard documents<br/>(default seed)"]:::std
    KB --> META["3 meta-documents<br/>STATE · INDEX · README"]:::meta
    KB --> GEN["1 generated pre-pass<br/>project-index.md"]:::gen
    KB --> EXT["KB extensions<br/>optional · project-specific<br/>via discovery.doc_set"]:::ext
    STD --> S1["architecture · tech-stack<br/>coding-standards · module-map"]:::std
    STD --> S2["schemas · pipeline-contracts<br/>integration-map · infrastructure"]:::std
    STD --> S3["test-landscape · tech-debt<br/>domain-glossary · …"]:::std
    DISC["aid-discover<br/>5 discovery sub-agents"]:::gen
    DISC -. "populate" .-> STD
    DISC -. "populate" .-> GEN

The Knowledge Base is the gravitational center of the entire methodology. Every phase reads from it. Any phase can trigger updates to it.

The Knowledge Base (.aid/knowledge/) is institutional memory — it outlives any individual session, sprint, or team member.

Structure

The Knowledge Base is divided into four categories: standard documents (the 14-document default seed), meta documents (INDEX, STATE, README — navigation and tracking), a generated pre-pass artifact (project-index.md in .aid/generated/), and optional extensions declared via discovery.doc_set in .aid/settings.yml. The diagram below shows these relationships.

The Declared Doc-Set

The 14-document standard set is the configurable default seed — the set synthesized from canonical/templates/knowledge-base/ when no project-specific override is configured. The doc-set is project-configurable via discovery.doc_set in .aid/settings.yml.

Before dispatching discovery sub-agents, the GENERATE state runs a propose→confirm checkpoint (Step 0d): the orchestrator infers a proposed doc-set from the project’s file inventory (as a diff against the default seed) and presents it to the user for confirmation or editing. Custom documents can be added; irrelevant standard ones can be dropped. The confirmed set is written to .aid/settings.yml and drives all subsequent discovery dispatches.

In practice: a simple CLI tool needs a handful of documents at depth; the rest stay thin. An enterprise monorepo fills all 14 and adds custom extensions. A greenfield project populates technology-stack.md, coding-standards.md, and domain-glossary.md from the interview and leaves the rest to grow. The shape is fixed even when a document is sparse, so the index and navigation remain consistent.

Full 14-document default seed listing

.aid/knowledge/
├── INDEX.md               # Meta: 2-3 line summary of every KB document (the navigation map)
├── README.md              # Meta: completeness status per document
├── STATE.md               # Meta: discovery-area state — grade, Q&A entries, review & summarization history
├── project-index.md       # Generated: a file-inventory pre-pass for the discovery sub-agents
│
├── project-structure.md   # Repository layout and file inventory
├── external-sources.md    # Vendor docs and references registered for discovery
├── architecture.md        # Patterns, layers, module boundaries, data flow
├── technology-stack.md    # Languages, frameworks, versions, build tools, runtime
├── module-map.md          # Every module: purpose, dependencies, size, test coverage
├── coding-standards.md    # Naming conventions, formatting, error handling patterns
├── schemas.md             # Database schema, entities, relationships, migrations
├── pipeline-contracts.md  # Pipelines/APIs consumed and exposed: auth models, rate limits
├── integration-map.md     # Message queues, caches, third-party services, webhooks
├── domain-glossary.md     # Business terms, domain language, entity definitions
├── test-landscape.md      # Test frameworks, coverage, test types, CI/CD pipeline
├── tech-debt.md           # Known debt items with file refs, risk ratings, remediation
├── infrastructure.md      # Hosting, networking, environments, deployment model
└── feature-inventory.md   # Canonical feature list, mapped to modules/endpoints/data

The fixed shape has a purpose: downstream skills always know exactly where to look. schemas.md always holds schemas. tech-debt.md always holds debt. Convention beats search.

Completeness Is Tracked

The README.md at the root of the Knowledge Base tracks what exists and what is missing:

# Knowledge Base — {Project Name}

| Document | Status | Last Updated | Source |
|----------|--------|-------------|--------|
| architecture.md | ✅ Complete | Mar 16 | aid-discover |
| coding-standards.md | ⚠️ Partial | Mar 16 | aid-discover (inferred) |
| domain-glossary.md | ❌ Missing | — | Needs interview |
| tech-debt.md | ❌ Missing | — | Needs interview |

Partial and missing documents are not failure states — they are the honest acknowledgment of what isn’t known yet. A partial coding-standards.md is better than a confident but wrong one. The KB grows as understanding accumulates.

Context Feeding Strategy — RAG by Convention

The Knowledge Base is the project’s memory. But memory only works if agents know where to look.

A common failure mode: an agent receives a task spec and the project spec, implements something technically correct — and violates a convention documented in coding-standards.md that it never saw. The agent didn’t know the document existed. The fix goes through review, gets rejected, comes back, gets redone. Waste.

AID solves this with the KB Index — a lightweight map of the entire Knowledge Base.

aid-config creates .aid/knowledge/INDEX.md at setup with placeholder rows; Discovery regenerates it with real content as its final step (and on the greenfield path, which skips Discovery, aid-interview updates it where applicable). This file contains a 2-3 line summary of each KB document — what it covers, when to consult it. It costs almost nothing to include in an agent’s context, but it gives the agent the ability to self-serve.

# Knowledge Base Index — {Project Name}

Use this index to find the right document before making assumptions.
If your task touches an area covered here, read the relevant document first.

| Document | Summary |
|----------|---------|
| architecture.md | MVVM + Clean Architecture layers. Service registration in ServiceCollectionExtensions.cs. Navigation via INavigationService. |
| coding-standards.md | PascalCase for public, _camelCase for fields. Result<T> for error handling. No exceptions for flow control. Async suffix on all async methods. |
| schemas.md | SQLite via EF Core. 8 entities. Soft deletes on Recording and Transcript. Migrations in /Migrations. |
| module-map.md | 12 modules. Core (services), UI (views/viewmodels), Infrastructure (data access), Tests. Module dependency diagram. |
| ... | ... |

The feeding protocol:

1. Every task receives INDEX.md. Always. It is the map. Cost: approximately 200–500 tokens. Value: the agent knows where to look.
2. The orchestrator selects 2–4 relevant KB docs based on the task’s domain (data work → schemas.md, pipeline/API work → pipeline-contracts.md).
3. The task template includes a search instruction: “If you need context not provided, consult .aid/knowledge/INDEX.md and read the relevant document before making assumptions.”
4. Review validates context usage. One review criterion: did the agent use available KB context, or did it guess?

This is RAG by convention — not embeddings and vector databases, but predictable file structure and an index that agents navigate. Retrieval happens in three tiers, cheapest first:

flowchart TB
    classDef t1 fill:#0B1F3A,stroke:#0B1F3A,color:#ffffff
    classDef t2 fill:#1D4ED8,stroke:#1D4ED8,color:#ffffff
    classDef t3 fill:#0F766E,stroke:#0F766E,color:#ffffff
    I["Tier 1 · INDEX.md<br/>one-line intent per KB doc — always loaded"]:::t1
    D["Tier 2 · one KB document<br/>loaded on demand when the intent matches"]:::t2
    L["Tier 3 · exact path:line<br/>cited inline in the task prompt"]:::t3
    I -- "agent picks the relevant doc" --> D
    D -- "agent cites the precise location" --> L

1. Tier 1 — INDEX.md, always loaded. Every task prompt carries the index (~200–500 tokens total). The agent always knows what knowledge exists and which file holds it, at negligible context cost.
2. Tier 2 — one KB document, on demand. From an INDEX entry the agent reads the single document a task needs. The fixed-shape directory makes this deterministic — schemas.md always holds schemas, tech-debt.md always holds debt — so the agent navigates by convention, never by search.
3. Tier 3 — an exact repository location, via citation. Every factual claim in a KB document carries an inline path:line citation. From a KB doc the agent jumps straight to the precise file and line — never globbing, never bulk-loading unrelated source.

The agent pays a few hundred tokens to know where everything is, then spends its context budget only on the one document and the specific lines a task genuinely needs.

Why not a vector database? Because the KB is small enough (14 standard documents, each a short markdown file) that convention beats infrastructure. The bottleneck is not retrieval speed — it is knowing what exists. The INDEX solves that at a fraction of the operational complexity.

When does the INDEX update? aid-config seeds it at setup; thereafter it is regenerated every time Discovery runs (full or targeted), and aid-interview updates it where applicable as requirements evolve. It is always rebuilt from the current state of the KB — never manually maintained.

The KB Outlives the Project

The Knowledge Base is institutional memory. It outlives any individual session, sprint, or developer. When a new team member joins — human or AI — they read the KB and have the project’s full context. When a feature request arrives six months later, the KB tells you what the system looks like now, not what the spec said it should look like.

This is the third conviction underlying AID: the Knowledge Base is the gravitational center. Not the spec. Not the code. The accumulated understanding of the project — architecture, conventions, domain language, tech debt — persists across phases, sprints, and team changes. The code is the output. The KB is the understanding that produces it.

---

4. The Phases

The skill-to-phase mapping in one scan, before the deep-dives.

Skill	Group	Phase	Output
aid-config	Prepare	— (bootstrap)	.aid/ scaffold · KB placeholders (14 templates + meta) · context file · STATE.md seeds
aid-discover	Prepare	1	14-document Knowledge Base · project-index.md pre-pass · STATE.md discovery grade/Q&A
aid-summarize	Prepare	— (optional viewer)	knowledge-summary.html — offline KB viewer
aid-interview	Define	2	REQUIREMENTS.md + per-feature SPEC.md stubs (full path) OR work-root SPEC.md + tasks/ (lite path)
aid-specify	Define	3	Technical spec added to each feature’s SPEC.md
aid-plan	Map	4	PLAN.md — features sequenced into deliveries
aid-detail	Map	5	Typed, PR-sized task-NNN.md files + execution graph
aid-execute	Execute	6	Implemented + reviewed code to grade ≥ minimum; 8 task types
aid-deploy	Deliver	— (optional)	Release package · package-NNN.md · DEPLOYMENT-STATE.md
aid-monitor	Deliver	— (optional)	MONITOR-STATE.md · classified findings → Interview (bugs or CRs)
aid-housekeep	Off-pipeline	—	KB-DELTA refresh · SUMMARY-DELTA · workspace CLEANUP

AID organizes six numbered development phases into five groups. The six phases (Discover through Execute) form the mandatory sequential pipeline; the fifth group, Deliver, holds two optional end-of-pipeline skills (aid-deploy, aid-monitor) that are invoked on demand rather than as required sequential phases. The pipeline is linear with feedback loops.

The Prepare group holds two non-phase skills: aid-config (bootstrap, run once) and aid-summarize (optional KB viewer). A third off-pipeline skill, aid-housekeep, runs outside all groups entirely — on-demand KB maintenance when drift accumulates between discovery cycles. These skills are not numbered phases; they do not participate in phase gates.

---

Group 1: Prepare

Set up the workspace and build an understanding of the existing system.

---

aid-config — Bootstrap (not a numbered phase)

Purpose: Initialize the AID workspace. Run once per project before the pipeline begins.

aid-config collects project metadata (greenfield or brownfield, project name, description, minimum grade threshold), scaffolds .aid/knowledge/ with the KB document templates (14 standard templates from the default seed plus the meta-documents), creates the host-tool context file (CLAUDE.md for Claude Code; AGENTS.md for Codex, Cursor, Copilot CLI, and Antigravity), and asks whether the .aid/ workspace should be committed to Git.

The scaffold is the blank canvas. After aid-config, the KB directory exists with empty placeholders; Discovery fills it.

---

Phase 1: Discover (aid-discover)

Purpose: Understand the existing system. Produce the Knowledge Base.

When to skip: Pure greenfield projects with no existing code. Interview and Specify populate a minimal KB instead.

When to re-enter: Any downstream phase finds the KB wrong or incomplete. Re-entry is always targeted — fill the specific gap, not redo full discovery.

[!WARNING] Skipping Discovery on a brownfield project means agents will work without understanding the existing architecture. The result is technically plausible but architecturally wrong code. The 40-minute Discovery investment eliminates hours of review-reject-redo cycles.

Why this phase exists: Every other methodology skips it. They assume you already understand the system well enough to write requirements. In brownfield projects — the overwhelming majority of enterprise software work — this assumption is wrong. The developer who built the system is gone; the documentation is stale; the architecture has drifted from whatever was originally designed. Dropping an AI agent into this without a KB produces hallucination: technically plausible but architecturally wrong code. Discovery is the fix.

Process:

Discover runs as a state machine: GENERATE → REVIEW → Q-AND-A → FIX → APPROVAL → DONE. One invocation per state. No auto-advance.

The GENERATE state opens with a fast deterministic pre-pass that writes .aid/generated/project-index.md — a shared file inventory that all discovery sub-agents read instead of re-scanning the repository independently. This eliminates redundant I/O and ensures sub-agents work from a consistent snapshot.

Before dispatching sub-agents, Discover runs the declared doc-set propose→confirm (Step 0d, described in §3). The confirmed doc-set drives which agents are dispatched and what filenames they produce.

Discover then dispatches its sub-agents:

• aid-researcher (pre-scan, alone, sequential): Writes project-structure.md and external-sources.md from the project index.
• aid-researcher instances (in parallel, one per confirmed doc-set scope): Cover the remaining KB documents. Each instance’s target list is drawn from the confirmed doc-set; an instance is not dispatched if its target list is empty. This pool of aid-researcher instances replaces the former five separate discovery-* agents (discovery-scout, discovery-architect, discovery-analyst, discovery-integrator, discovery-quality).
• aid-reviewer (after generation): Grades the result adversarially against the universal rubric. KB-doc review is a dispatch parameter — the generation agents never grade their own work.

Across the run, discovery covers:

1. Structure scan — Detect project type, map folder layout, list modules/packages.
2. Architecture analysis — Identify patterns, layers, boundaries, data flow.
3. Stack inventory — Languages, frameworks, versions, build tools, runtime.
4. Convention mining — Naming patterns, error handling, logging, config management (inferred from code).
5. Module mapping — Every module: purpose, dependencies, size, test coverage.
6. Data model extraction — Schema, entities, relationships, migrations.
7. Integration surface — External APIs, message queues, caches, third-party services.
8. Test landscape — Frameworks, coverage metrics, test types, CI/CD pipeline.
9. Tech debt audit — Large files, circular dependencies, missing tests, outdated packages.
10. Gap identification — What couldn’t be determined from code alone → feeds into Interview.
11. INDEX generation — The orchestrator assembles .aid/knowledge/INDEX.md with a 2-3 line summary of every KB document produced.

Output: .aid/knowledge/ — all documents in the confirmed doc-set, the generated project-index.md pre-pass, the INDEX.md and README.md meta-documents, and the grade and Q&A recorded into the discovery-area STATE.md (at .aid/knowledge/STATE.md). feature-inventory.md is scaffolded during the run and completed later in the Q&A → FIX cycle.

---

aid-summarize — Optional KB Viewer (not a numbered phase)

Purpose: Generate a single self-contained knowledge-summary.html from the approved Knowledge Base.

aid-summarize is an optional, read-only skill that produces an offline HTML viewer of the KB — light/dark theme, WCAG-AA accessible, with Mermaid diagrams rendered inline. It is idempotent: re-running it on an unchanged KB is a no-op. Run it after Discovery approval when you want a portable, shareable view of the project’s understanding.

---

Group 2: Define

Gather requirements and formalize the problem statement.

---

Phase 2: Interview (aid-interview)

Purpose: Gather requirements and decompose them into features (full path) or directly into a task set (lite path). Produce the work-area artifacts that drive the rest of the pipeline.

TRIAGE Routing

Every interview begins with TRIAGE — a routing step that runs before any requirements gathering. TRIAGE is description-first: you describe the work in your own words, and the agent infers two things — the internal work-type and the single best-matching recipe — then confirms both in one turn before routing.

flowchart LR
    classDef def   fill:#6D28D9,stroke:#6D28D9,color:#ffffff
    classDef exe   fill:#166534,stroke:#166534,color:#ffffff
    classDef lite  fill:#92400E,stroke:#92400E,color:#ffffff

    Triage["aid-interview · TRIAGE<br/>describe the work → infer type + recipe → confirm"]:::def

    subgraph FullPath[" Full path "]
        direction LR
        F1["Interview<br/>REQUIREMENTS + feature SPEC stubs"]:::def
        F2["aid-specify"]:::def
        F3["aid-plan"]:::def
        F4["aid-detail"]:::def
    end
    subgraph LitePath[" Lite path "]
        direction LR
        L1["CONDENSED-INTAKE"]:::lite
        L2["TASK-BREAKDOWN"]:::lite
        L3["LITE-REVIEW"]:::lite
    end
    Exec["aid-execute"]:::exe

    Triage -- "no confident match:<br/>multi-target / broad scope / ambiguous" --> F1
    F1 --> F2 --> F3 --> F4 --> Exec
    Triage -- "confident single-recipe match:<br/>small, single-target work" --> L1
    L1 --> L2 --> L3 --> Exec
    L3 -. "escalate if scope grows" .-> F1

TRIAGE routes at the start of every interview. You describe the work; the agent infers the work-type and best recipe and confirms. A confident, single-target match routes to the lite path; an ambiguous, multi-target, or broad-scope description routes to the full path. A lite work can escalate to full mid-flight if scope grows (Path: escalated in STATE.md).

How the inference works:

Step	What happens
1. Describe	You write what you want to do, in plain language (“fix the login crash on special characters”, “add a /orders API endpoint”, “rename OrderSvc everywhere”).
2. Infer type	The agent classifies the work into one of three internal work-types — bug-fix, new-feature, or refactor. You never pick this from a menu.
3. Match recipe	The agent scans the recipe catalog, reading each recipe’s one-line summary:, and picks the best match within the inferred type (or a cross-type * recipe).
4. Confirm	You accept the inferred type + recipe, pick a different recipe, or reject — all on one turn.

The router is conservative: only a confident, single-recipe match routes to lite. Anything ambiguous, multi-target, or broad routes to the full path. (The old single-doc work-type is gone — documentation and report work is now new-feature when you’re adding a document and refactor when you’re changing one.)

The lite path is not a cost mitigation you weigh — it is the default path for small work. TRIAGE automates the proportionality decision. Most individual tasks (bug fixes, refactors, doc updates, small features) route to the lite path without any deliberate choice on the user’s part.

Full Path

Full-path workspace: Each interview creates a work — a self-contained unit of scope inside .aid/:

.aid/
  knowledge/                    ← shared KB (from Discovery)
  work-001-user-auth/           ← one work per interview
    STATE.md                    ← work-area state — process tracking (section status, Q&A, grade)
    REQUIREMENTS.md             ← product (stakeholder requirements)
    features/
      feature-001-login/
        SPEC.md                 ← requirements side (from Interview) + tech spec (from Specify)
      feature-002-password-reset/
        SPEC.md

Multiple works can coexist — a client requests auth now, reporting later. Each work has its own requirements and features, sharing the same KB.

Full-path process (seven states):

States 1–4: The conversational interview. One question at a time — starting broad (Objective, Problem Statement) and getting specific (Constraints, Acceptance Criteria). State 1 opens the interview and State 3 continues it; State 2 is a Q&A mode that resolves pending questions raised by a downstream-phase loopback, a cross-reference pass, or review findings; State 4 is the completion-and-approval gate that finalizes REQUIREMENTS.md.

When a KB exists (brownfield), questions come with suggested answers and source citations: [From: .aid/knowledge/{source}.md] with options to accept, skip, or provide a custom answer. Nothing is silently inferred. This is what makes brownfield interviews short — the KB pre-fills technical context.

State 5: Feature Decomposition. After REQUIREMENTS.md is approved, the agent proposes a feature breakdown from §5 Functional Requirements. Each approved feature gets its own folder with a SPEC.md containing the requirements side (description, user stories, priority, acceptance criteria). The technical specification section is left empty — that is Specify’s job.

State 6: Cross-Reference. Validates REQUIREMENTS.md against the full KB. Checks for contradictions, gaps, missing evidence, and staleness. Grades the findings with AID’s universal rubric.

State 7: Done. REQUIREMENTS.md is approved and each per-feature SPEC.md exists with its requirements side filled in — the work is ready for Specify.

One grading rubric across the pipeline. Every development phase that grades — Discover, Interview, Specify, Plan, Detail, Execute — works the same way: the reviewer classifies each issue it finds by severity ([CRITICAL] / [HIGH] / [MEDIUM] / [LOW] / [MINOR]), and the letter grade is computed deterministically — the worst severity present dominates, and the count within that tier sets the modifier. A scale that runs A+ down to F, with an E band for critical-severity issues. The reviewer never hand-picks a grade. Each phase loops until its grade meets the project’s minimum (set at aid-config). See §7 and canonical/templates/grading-rubric.md.

Output (full path): .aid/{work}/REQUIREMENTS.md + .aid/{work}/features/feature-NNN-{name}/SPEC.md (requirements side only).

Lite Path

After TRIAGE routes to lite, the interview shifts to a condensed, efficient flow that produces the same structured artifacts the full path would — just without the multi-phase overhead.

Lite-path workspace:

.aid/
  knowledge/                    ← shared KB (from Discovery, if brownfield)
  work-002-fix-login-bug/       ← one work per interview
    STATE.md                    ← work-area state
    SPEC.md                     ← work-root spec (no features/ folder, no REQUIREMENTS.md)
    tasks/
      task-001.md               ← typed task(s) produced directly

No features/ folder. No REQUIREMENTS.md. No PLAN.md. One work-root SPEC.md holds the consolidated requirements and technical context.

The three lite sub-paths: the inferred work-type maps to a sub-path. Documentation and report work is not a separate type — adding a document is a new-feature, changing one is a refactor.

work-type (inferred)	Sub-path	Typical task set
bug-fix	LITE-BUG-FIX	1 IMPLEMENT task (fix + regression test)
refactor	LITE-REFACTOR	1–3 REFACTOR + TEST tasks (incl. changing existing docs/reports)
new-feature	LITE-FEATURE	1–5 IMPLEMENT + TEST + DOCUMENT tasks (incl. adding new docs/reports)

The lite-path states:

• CONDENSED-INTAKE — a conversational slot-fill that produces the work-root SPEC.md. No deep multi-question interview; just the fields the task type needs.
• TASK-BREAKDOWN — an aid-architect agent proposes the typed task set directly from the SPEC. No separate Plan or Detail phases required.
• LITE-REVIEW — an aid-reviewer adversarially validates the task set. Same rubric as the full path; same adversarial separation (reviewer ≠ proposer).
• LITE-DONE — terminal state; provides the hand-off prompt to /aid-execute.

Recipes

For recurring patterns — the same kind of change you make repeatedly to the same kind of project — AID ships a catalog of 51 recipes at canonical/recipes/. Recipes are named by the change they make, so the name tells you what they do:

Group	Naming	Examples	Count
Add a thing (new-feature)	add-X	add-api-endpoint, add-ui-component, add-entity, add-job, add-docs, add-report	20
Change a thing (refactor)	change-X	change-api-endpoint, change-ui-component, change-schema, change-job, change-docs	20
Fix a thing (bug-fix)	fix-X	fix-application, fix-api, fix-ui, fix-regression, fix-security	7
Refactor-only	(verb)	improve-performance, bump-dependency, rename-symbol	3
Cross-type (*)	—	add-test-coverage	1

The 40 add-/change- recipes span eleven target-kind families (objects/models, API, UI, CLI, DB/storage, config/flags, jobs, messaging, rules, docs/reports, integrations), mostly as matched add-/change- pairs — with a few naming exceptions where the two sides read more naturally apart (e.g. add-entity / change-schema).

Each recipe carries a one-line summary: in its YAML frontmatter — that is what TRIAGE reads to match your free-form description to the right recipe. The body is a pre-filled template: frontmatter (name, applies-to ∈ {bug-fix, new-feature, refactor, *}, slot-count, task-count, summary) + a ## spec block + a ## tasks block + {{slot}} placeholders. The placeholders are substituted at render time by canonical/scripts/interview/parse-recipe.sh. Using a recipe eliminates the conversational interview for a known pattern — you confirm the match, fill the slots, and the recipe produces the SPEC.md and task set directly.

Recipes are a shortcut, not a bypass. The task set a recipe produces is the same structured, typed, reviewed artifact that the full interview would produce. The difference is speed for patterns you know well enough to template. (The catalog is authored breadth-first; over time, similar add-/change- pairs may be consolidated.)

Escalation

A lite work can be promoted to full mid-flight. If the scope expands during the condensed interview — more features than TRIAGE anticipated, more complexity than the slot-fill can handle — the skill escalates. Path: escalated is treated identically to Path: full; the work enters the full Interview flow. The ## Escalation Carry block in STATE.md preserves slot answers and decisions already gathered, so the user is not asked again for information already given.

---

Phase 3: Specify (aid-specify)

Purpose: Technical refinement of a single feature through conversational collaboration with the developer. The agent acts as a tech lead — proposes concrete solutions grounded in the KB and codebase, discusses trade-offs, and writes the technical specification into the feature’s SPEC.md.

Input: A feature’s SPEC.md (requirements side, from Interview) + REQUIREMENTS.md + .aid/knowledge/ + the codebase.

What this is: Agile refinement for AI-augmented teams. Interview captured what the stakeholder wants. Specify determines how to build it — one feature at a time, through discussion with the developer.

The key distinction from generic spec generation: the agent does not ask “what technology do you want to use?” — it proposes based on what the KB and codebase already show. “I see you use Spring Boot with JPMS modules. Here is how this feature fits into the existing module structure.” The developer validates, not dictates. This is grounded proposal, not open-ended brainstorming.

The universal loop: Each technical section follows the same cycle:

1. Propose — the agent proposes a concrete solution referencing specific files, classes, patterns, and conventions from the codebase.
2. Discuss — the developer validates, adjusts, or redirects. The agent pushes back on contradictions, presents trade-offs, adapts.
3. Write — the agreed section is written to SPEC.md.
4. Review — the agent verifies what was written against KB reality and other completed sections. Pass → next section. Fail → back to Propose with findings.

Re-run = enter at step 4 with existing content. Running /aid-specify on a completed feature reviews all sections against current reality (KB, codebase, requirements), grading each section with the universal rubric. The same loop handles both creation and maintenance.

Process: One feature per run. Determines applicable sections: 3 core (Data Model, Feature Flow, Layers & Components) always present, plus up to 19 conditional sections activated by context (API Contracts, UI Specs, Events, Security, Migration, etc.).

Output: ## Technical Specification section added to .aid/{work}/features/feature-NNN/SPEC.md — Data Model, Feature Flow, Layers & Components, plus activated conditional sections.

Full path only: Specify is skipped on the lite path, which collapses Specify + Plan + Detail into the Interview’s TRIAGE-routed condensed flow.

---

Group 3: Map

Define the roadmap and decompose into executable tasks.

---

Phase 4: Plan (aid-plan)

Purpose: Sequence features into deliverables — each one a functional MVP that builds on the previous. Plan answers ONE question: “In what order do we deliver, and does each delivery stand on its own?”

Input: The feature SPECs whose per-feature state Specify has marked Ready + REQUIREMENTS.md + KB (architecture, module-map, tech-debt).

The universal loop: Each deliverable follows the same cycle as Specify — Propose, Discuss, Write, Review — applied at the delivery level rather than the feature level.

What Plan does NOT do (already covered by Specify): module mapping, test scenarios, per-feature risks and trade-offs, spikes, technical details. Plan only adds the sequencing dimension — which features go in which delivery and in what order.

Why two-level planning matters: In most methodologies there is one level of planning — a backlog, a sprint, a roadmap. AID separates strategy (Plan) from tactics (Detail). Plan answers “what goes in MVP vs. v2 vs. v3.” Detail answers “how do we build MVP — what are the tasks, what are their dependencies.” Mixing these levels is where planning sessions get bogged down in micro-decisions before the macro-structure is settled.

Output: .aid/{work}/PLAN.md — ordered deliverables (each a shippable MVP), optional cross-cutting risks, optional deferred features list.

Full path only: Plan is skipped on the lite path.

---

Phase 5: Detail (aid-detail)

Purpose: Break each deliverable into small, sequential, testable tasks. Each task = one agent session = one PR = one human review. The ultimate breakdown.

Input: .aid/{work}/PLAN.md + feature SPECs + KB (architecture, module-map, coding-standards).

The universal loop: Each deliverable follows Propose, Discuss, Write, Review — this time producing task files rather than specifications.

Task format: Six sections — Title, Type, Source, Depends on, Scope, Acceptance Criteria. Nothing else. The Type drives both how the executor works and how the reviewer evaluates the task. Every task except the first declares at least one Depends on entry; the first uses — (none).

The eight task types are:

• RESEARCH — investigate, compare options, document findings
• DESIGN — mockups, wireframes, UI prototypes, interaction flows
• IMPLEMENT — write code + unit tests
• TEST — integration, E2E, UI, load tests
• DOCUMENT — ADRs, API docs, runbooks, diagrams
• MIGRATE — data migration scripts, schema changes
• REFACTOR — restructure code without changing behavior
• CONFIGURE — config files, CI/CD, environment setup

Output: .aid/{work}/tasks/task-NNN.md files — sequential tasks numbered globally across all deliverables — plus an execution graph (dependency and parallel-wave tables) appended to PLAN.md.

Full path only: Detail is skipped on the lite path, which produces tasks directly.

---

Group 4: Execute

Execute every task to a graded bar — code, tests, research, design, docs, and more.

---

Phase 6: Execute (aid-execute)

Purpose: Execute tasks based on their type. Not just coding — every task has a type that determines what the agent does and how the reviewer evaluates it.

Input: task-NNN.md (with Type field) + PLAN.md (delivery context + execution graph) + the per-feature SPEC.md + known-issues.md (if present) + .aid/knowledge/INDEX.md.

Process (universal loop, all types):

1. Read task type and load relevant KB docs via INDEX.md.
2. Execute according to type-specific rules (code, tests, research, design, etc.).
3. Verify relevant gates pass (build, lint, tests — as applicable to the type).
4. Dispatch separate reviewer agent (clean context, tier ≥ executor tier) with type-specific review criteria.
5. Grade with the deterministic rubric and present all issues to the user.
6. If the grade meets the minimum, mark the task Done. Otherwise: with the user’s approval, auto-fix CODE issues and route TASK/SPEC/KB issues as loopbacks.
7. Loop until the grade meets the minimum. Circuit breaker if the grade has not improved (same or worse) after 3 consecutive cycles.

[!IMPORTANT] The reviewer’s tier is always ≥ the executor’s tier. The agent that writes never grades its own work. Do not lower the minimum grade threshold to skip review — the deterministic grade gate is the mechanism that catches spec, architecture, and convention issues that tests cannot detect.

The two-tier review design: Execute uses a two-tier review model. Within each task, a quick-check reviewer (Small tier) catches obvious issues without triggering a full grade loop. At the end of each delivery, a delivery-gate reviewer (tier matched to delivery complexity) runs a full review-fix-review loop with grade.sh. High findings from quick-checks accumulate for the delivery gate. The design means fast tasks stay fast while complex deliveries get the scrutiny they need.

Parallel pool dispatch: In delivery mode, Execute uses a continuous parallel pool (PD model) rather than a serial task loop. Up to max_parallel_tasks tasks (default 5, configured in .aid/settings.yml) run simultaneously. The pool is replenished as tasks complete; failed tasks block their transitive dependents (computed by compute-block-radius.sh via BFS). If the host does not support background dispatch, the pool degrades gracefully to sequential execution with a user-visible notice.

Branch isolation: One branch per delivery (aid/{work}-delivery-NNN). All tasks in a delivery share the branch. RESEARCH and DOCUMENT tasks that produce only .aid/ artifacts may skip branching.

Impediment protocol: When the agent discovers assumptions don’t hold, it generates an IMPEDIMENT-task-NNN.md rather than silently working around the problem. The impediment is typed (kb-gap | architecture-conflict | missing-dependency | wrong-assumption) and presented to the human with options and a recommendation. The human decides.

Output: Artifacts appropriate to the task type. Grade ≥ minimum. The grade and full review history are recorded in the work-area STATE.md ## Tasks Status section.

---

Group 5: Deliver

Optionally ship, monitor, and classify issues.

The two Deliver-group skills — aid-deploy and aid-monitor — are optional, on-demand skills, not numbered pipeline phases. They are positioned at the end of the pipeline, but neither is required to complete a development cycle and neither is a forced sequential step after Execute. A project may ship by other means, may run monitoring without using aid-deploy, or may skip both entirely. Run them when the project’s delivery model calls for them.

This mirrors aid-summarize — an optional skill in the Prepare group — and aid-housekeep, the optional off-pipeline maintenance skill described below. The feedback loops they participate in (§6, Loops 8–10) apply only when these skills are run.

---

Deploy (aid-deploy) — optional

Purpose: Bundle one or more completed deliveries into a release package, verify it, and ship it to production.

Process:

1. Package selection: Choose which completed deliveries go into this release package.
2. Final verification: Full build + complete test suite + lint/format check. Zero failures, zero warnings.
3. Package record: Write package-NNN-{slug}.md — deliveries included, verification results, environment, and release notes.
4. Packaging: Produce the release artifact prescribed by infrastructure.md § Deployment — a pull request, a container image, a published package, an installer, or a static-site deploy.
5. Documentation routing: Route any KB-affecting discoveries to Discovery as Q&A entries in the discovery-area STATE.md (.aid/knowledge/STATE.md). Deploy never edits KB documents directly.
6. Artifact status update: Mark the package’s deliveries and their tasks Shipped.

Output: package-NNN-{slug}.md + DEPLOYMENT-STATE.md + the release artifact prescribed by infrastructure.md.

---

Monitor (aid-monitor) — optional

Purpose: Observe production, classify findings, and route actions. Combines telemetry interpretation with triage in a single observe → classify → act cycle.

The key distinction: Monitor interprets, it does not just collect. A dashboard shows you a spike. Monitor tells you “error rate increased 340% after deploy #47, concentrated in the payment module, affecting ~2,000 users” — and then classifies it as a BUG with root cause analysis and patch scope.

Bug vs. CR: If the spec said “do X” and the code doesn’t do X — bug. If users now need Y instead of X — CR, even if the code “works.”

Process:

1. Observe — Pull from configured sources. Detect anomalies vs. baseline. Correlate signals across sources.
2. Classify — For each finding: BUG (spec right, code wrong), Change Request (spec needs change), Infrastructure (ops), or No Action (false positive).
3. Analyze — Root cause analysis for bugs: trace → fault → scope → test requirements.
4. Propose — Present findings with routing recommendations to the user.
5. Act — Route findings: bugs via Interview’s LITE-BUG-FIX triage → Execute; change requests as new/changed requirements to Interview (full pipeline or new work); escalate infrastructure findings.

The short path: BUG → aid-interview (LITE-BUG-FIX triage → task) → aid-execute. The short path skips specification and planning because the spec is already correct — only the code is wrong.

Output: MONITOR-STATE.md — a last-run log, active findings (each with classification, severity, evidence, and routing), and resolved findings.

---

Off-Pipeline: aid-housekeep

Purpose: Reconcile Knowledge Base drift without running a full discovery cycle. An optional, on-demand skill with no phase gate — not in the mandatory pipeline flow and not a member of any group’s sequential flow.

As a project evolves, the codebase drifts from the KB. New dependencies appear. Modules are refactored. Integration patterns shift. The KB becomes stale without a discovery re-run to update it. aid-housekeep is the lightweight mechanism for catching and closing that drift without re-running full discovery.

aid-housekeep runs on a dedicated aid/housekeep-* branch (one commit per stage, never pushes) through a five-state machine:

• PREFLIGHT — checks preconditions (branch, workspace, settings).
• KB-DELTA — re-discovers KB docs that have drifted from the repo since the last KB approval. Synthesizes a **Impact:** Required Q&A entry to drive /aid-discover’s targeted re-discovery.
• SUMMARY-DELTA — regenerates the visual summary via /aid-summarize if the KB changed.
• CLEANUP — sweeps stale .aid/ work-area artifacts (old work directories, resolved impediments, completed task state files).
• DONE — terminal state.

The skill is re-entrant: a stalled run resumes at the stalled stage.

--cleanup-only skips KB-DELTA and SUMMARY-DELTA and jumps directly to CLEANUP — useful when you want to tidy the workspace without triggering a discovery cycle.

---

5. The Agent Model

flowchart TB
    classDef large fill:#1E3A8A,stroke:#1E3A8A,color:#ffffff
    classDef med   fill:#0F766E,stroke:#0F766E,color:#ffffff
    classDef small fill:#E5E7EB,stroke:#9CA3AF,color:#1F2937

    subgraph L["Large tier — 4 · highest-stakes (Opus / GPT-5.5 / Gemini-3 Pro hi)"]
        direction LR
        LA["aid-interviewer"]:::large
        LB["aid-architect"]:::large
        LC["aid-researcher"]:::large
        LD["aid-reviewer"]:::large
    end
    subgraph M["Medium tier — 4 · production workhorses (Sonnet / GPT-5.4 / Gemini-3 Pro lo)"]
        direction LR
        MA["aid-developer"]:::med
        MB["aid-operator"]:::med
        MC["aid-orchestrator"]:::med
        MD["aid-tech-writer"]:::med
    end
    subgraph S["Small tier — 1 · mechanical (Haiku / GPT-5.4-mini / Gemini-3 Flash)"]
        direction LR
        SA["aid-clerk"]:::small
    end
    L -. "reviewer tier ≥ executor tier" .-> M -.-> S

9 specialist agents across three model tiers. The reviewer’s tier is always ≥ the executor’s tier — the agent that writes never grades its own work.

AID dispatches 9 specialist agents across three model tiers. The key design invariant: the reviewer’s tier is always ≥ the executor’s tier. The agent that writes never grades its own work.

The Three Tiers

• Large (4 agents): aid-interviewer, aid-architect, aid-researcher, aid-reviewer. Large agents handle the highest-stakes work — requirements gathering, architectural decisions, brownfield discovery (KB authoring, replacing the former five discovery-* agents), and adversarial review.
• Medium (4 agents): aid-developer, aid-operator, aid-orchestrator, aid-tech-writer. The production workhorses — they implement, operate releases, route pipeline findings, and author user-facing documentation. aid-developer absorbs former data-engineer and devops roles; aid-architect absorbs former ux-designer advisory work.
• Small (1 agent): aid-clerk. Deterministic, fast, low-cost. One parameterized utility dispatched for mechanical operations (extract / format / glob) where Large-tier reasoning is unnecessary overhead.

The tier colors in the diagram intentionally echo pipeline group colors — Large tier uses Prepare navy (#1E3A8A) because Large agents handle high-stakes judgment (like Discovery); Medium uses Map teal (#0F766E) because Medium agents handle operational execution (like Map/Execute). This is semantic overlap by design.

Tier Mapping per Profile

All five host-tool profiles map the same three tiers to their respective models:

Tier	Claude Code	Codex CLI	Cursor	Copilot CLI	Antigravity
Large	Claude Opus	GPT-5.5 high reasoning	Claude Opus (alias)	Large slug	Gemini-3 Pro high reasoning
Medium	Claude Sonnet	GPT-5.4 medium reasoning	Claude Sonnet (alias)	Medium slug	Gemini-3 Pro low reasoning
Small	Claude Haiku	GPT-5.4-mini low reasoning	Claude Haiku (alias)	Small slug	Gemini-3 Flash

The tier→model mapping is declared per profile in profiles/{tool}.toml and rendered into each install tree. Byte-identical skill and agent bodies are emitted for all five profiles; only the model names and agent format differ.

Agent Formats

The four agent formats emitted by the generator correspond to the four ways host tools represent sub-agents:

• markdown — Claude Code and Cursor: the canonical source is AGENT.md, rendered into the install tree as aid--prefixed files (aid-developer.md, aid-architect.md, etc.) with markdown frontmatter.
• toml — Codex: .codex/agents/*.toml files.
• copilot-agent — GitHub Copilot CLI: .github/agents/*.agent.md with name/description/tools/model frontmatter.
• antigravity-rule — Antigravity: .agent/rules/*.md with trigger:-style frontmatter (personas → trigger: always_on).

The Five Profiles

AID ships as five rendered install trees. The single canonical source (canonical/) is compiled into five byte-identical-body, format-adapted outputs:

#	Profile	Install root	Context file	Agent format
1	Claude Code	.claude/	CLAUDE.md	markdown
2	Codex CLI	.codex/agents/ + .agents/	AGENTS.md	TOML
3	Cursor	.cursor/	AGENTS.md	markdown + .mdc rules
4	GitHub Copilot CLI	.github/	AGENTS.md	copilot-agent
5	Antigravity	.agent/	AGENTS.md	antigravity-rule

The build pipeline:

canonical/  (single source of truth — never edit profiles/ directly)
  ├── skills/        (11 user-facing skills)
  ├── agents/        (9 agents)
  ├── templates/     (KB templates, document templates)
  ├── recipes/       (51 lite-path recipes — add-/change-/fix- families)
  └── scripts/       (helper scripts by phase)
        │
        ▼  python run_generator.py
        │  (renders per profiles/*.toml — 5 profiles)
        │
profiles/{claude-code,codex,cursor,copilot-cli,antigravity}/
  (byte-identical install trees, format-adapted per profile)
        │
        ▼  install.sh / install.ps1  (end-user installer)
        │  (--tool <name> or auto-detect; diff-aware copy; protect-on-diff)
        │
/path/to/user-project/
  {.claude/ | .codex/+.agents/ | .cursor/ | .github/ | .agent/}

A VERIFY (deterministic) gate re-renders all five profiles into a scratch directory and byte-compares them against the committed install trees after every run_generator.py execution. Any byte mismatch is a hard failure. This ensures canonical/ is always the source of truth.

Per-tool installs: install.sh / install.ps1 installs one tool per invocation via --tool <name> (auto-detect when omitted). Codex, Cursor, Copilot CLI, and Antigravity all write a root AGENTS.md context file. When a second AGENTS.md-writing tool is installed into a project, the installer uses protect-on-diff: if AGENTS.md was not written by AID (or was modified since), the installer writes the incoming version as AGENTS.md.aid-new rather than overwriting, and exits with a warning to review and merge. Claude Code uses CLAUDE.md and is exempt from the AGENTS.md collision. Pass --force to overwrite unconditionally.

Skill → Agent Dispatch

Each skill dispatches a defined set of agents — the executor for the work and a separate reviewer whose tier is always ≥ the executor’s. The separation is structural: the reviewer agent is invoked in a clean context after the executor’s output is complete and never sees the executor’s reasoning. This prevents the reviewer from anchoring on the executor’s framing rather than evaluating the output independently.

---

6. Feedback Loops

flowchart TB
    classDef prep    fill:#1E3A8A,stroke:#1E3A8A,color:#ffffff
    classDef def     fill:#6D28D9,stroke:#6D28D9,color:#ffffff
    classDef map     fill:#0F766E,stroke:#0F766E,color:#ffffff
    classDef exe     fill:#166534,stroke:#166534,color:#ffffff
    classDef delopt  fill:#C2410C,stroke:#C2410C,color:#ffffff,stroke-dasharray:5 4
    classDef offpipe fill:#374151,stroke:#374151,color:#ffffff

    D["1 · Discover"]:::prep
    I["2 · Interview"]:::def
    S["3 · Specify"]:::def
    P["4 · Plan"]:::map
    Dt["5 · Detail"]:::map
    E["6 · Execute"]:::exe
    Dp["Deploy · optional"]:::delopt
    M["Monitor · optional"]:::delopt
    Any["Any phase<br/>L11 · cross-cutting"]:::offpipe

    D --> I --> S --> P --> Dt --> E
    E  -. "optional" .-> Dp
    E  -. "optional" .-> M
    I  -. "L1" .-> D
    S  -. "L2" .-> D
    P  -. "L3" .-> D
    P  -. "L4" .-> S
    Dt -. "L5" .-> P
    E  -. "L6 · impediment" .-> D
    E  -. "L7 · review" .-> S
    Dp -. "L8 · verification" .-> E
    M  -. "L9 · bug" .-> I
    M  -. "L10 · change request" .-> I
    Any -. "targeted re-discovery" .-> D

Eleven formal feedback loops — eight within development, two from production back to development, one cross-cutting from any phase. Each dashed arrow is a formal protocol that produces a Q&A entry in a STATE file, an IMPEDIMENT file, or a MONITOR-STATE finding.

The development pipeline (Discover through Execute) is sequential by default; the optional Deliver-group skills (Deploy, Monitor) run on demand at the end. But real engineering is not linear. Assumptions break. Gaps appear. Production reveals truths that development couldn’t anticipate. AID defines eleven formal feedback loops — eight within development, two connecting production back to development, and one cross-cutting re-entry available from any phase.

The Eleven Loops

Loop	From	To	Trigger condition
L1	Interview	Discover	A human’s answer reveals the KB is wrong or incomplete
L2	Specify	Discover	Writing the spec exposes insufficient understanding of a subsystem
L3	Plan	Discover	Planning reveals the codebase is more complex than the KB captured
L4	Plan	Specify	The KB is complete, but a SPEC is ambiguous or contradictory
L5	Detail	Plan	The plan is too vague to decompose into tasks
L6	Execute	Discover / Specify / Detail	Agent discovers an assumption doesn’t hold (IMPEDIMENT-task-NNN.md)
L7	Execute Review	Any upstream phase	Reviewer finds issues traced to the task, spec, or KB — not just code quality
L8	Deploy	Execute	Final verification (build + tests + lint) fails before the delivery ships
L9	Monitor	Interview (bug path)	Monitor classifies a finding as BUG → LITE-BUG-FIX triage
L10	Monitor	Interview (CR path)	Monitor classifies a finding as Change Request → requirements update
L11	Any phase	Discover	Any phase finds the KB wrong, incomplete, or stale

Development Loops (1–8)

Loop 1: Interview → Discovery. During the interview, a human’s answer reveals the KB is wrong or incomplete. Interview writes a Q&A entry to the discovery-area STATE.md → targeted discovery on the specific area → KB updated → interview resumes with corrected understanding.

Loop 2: Specify → Discovery. Writing the spec exposes insufficient understanding of a subsystem. Specify pauses → writes a Q&A entry to the discovery-area STATE.md → targeted discovery → KB updated → Specify resumes.

Loop 3: Plan → Discovery. Planning reveals the codebase is more complex than the KB captured. Plan writes a Q&A entry → targeted discovery → KB updated → planning resumes.

Loop 4: Plan → Specify. The KB is complete, but the SPEC is ambiguous or contradictory. Plan writes a Q&A entry to the feature’s STATE.md → spec revision (possibly with a targeted interview) → planning resumes.

Loop 5: Detail → Plan. The plan is too vague to decompose into tasks. Deliverables are too broad, module boundaries unclear, or test scenarios don’t map to features. Detail flags the under-specified deliverable → Plan revises it → Detail resumes.

Loop 6: Execute → Discovery / Specify / Detail. While executing a task, the agent discovers an assumption doesn’t hold in the actual codebase. IMPEDIMENT-task-NNN.md is written, then routed by type — kb-gap → targeted discovery; architecture-conflict → Specify; missing-dependency → Detail; wrong-assumption → update the task or SPEC. The agent never silently works around the problem.

Loop 7: Execute Review → Any Upstream Phase. The reviewer step inside Execute finds issues that trace to the task, the spec, or the KB — not just code quality. Issues are tagged by source (CODE / TASK / SPEC / KB). CODE issues are auto-fixed inside the Execute loop with the user’s approval. A TASK issue routes to a task update; SPEC and KB issues escalate to Specify and Discovery respectively.

Loop 8: Deploy → Execute. (Applies only when Deploy is run.) Deploy’s final verification — a full build, the complete test suite, and the lint/format check — fails before the delivery ships. Failures are documented → routed back to /aid-execute for the fix → Deploy’s verification re-runs.

Post-Production Loops (9–10)

These loops apply only when Monitor is run.

Loop 9: Monitor → Interview (Bug Path). Monitor classifies a finding as BUG. Monitor performs root cause analysis and routes the bug to aid-interview’s LITE-BUG-FIX triage, which creates the task(s) → aid-execute (→ optional aid-deploy). The short path.

Loop 10: Monitor → Interview (Change Request Path). Monitor classifies a finding as Change Request. Monitor routes the change request to aid-interview as new/changed requirements → the pipeline runs from Interview (Specify → Plan → Detail → Execute); a large-enough CR spins up a new work.

Cross-Cutting Loop (11)

Loop 11: Any Phase → Discovery (Targeted Re-Discovery). Any phase finds the Knowledge Base wrong, incomplete, or stale for the work at hand. A targeted discovery run updates the specific KB document(s) — never a full re-discovery — and the calling phase resumes with corrected understanding. This is the loop that makes the Knowledge Base the gravitational center in practice, not just in principle.

The Revision Trail

Every change to an upstream artifact is tracked inside the artifact itself — a ## Revision History table (or, for REQUIREMENTS.md and feature SPEC.md, a ## Change Log at the top):

## Revision History

| Rev | Date | Source | Description |
|-----|------|--------|-------------|
| 1.0 | Mar 1 | aid-specify | Initial spec |
| 1.1 | Mar 5 | Q&A (aid-plan) | Added latency requirements |
| 1.2 | Mar 8 | IMPEDIMENT task-F3a (aid-execute) | Changed sync model |

The revision trail is not a formality — it is the audit record that lets any phase understand why an artifact changed, not just what changed. When a spec contradicts the KB, the revision trail identifies which loop revision introduced the divergence.

Feedback Loop Artifacts

The design-phase loops record the gap as a Q&A entry appended to the relevant area’s STATE.md — the discovery-area STATE.md (.aid/knowledge/STATE.md) for a KB gap, the work-area STATE.md for a requirements gap. The next run of the owning phase detects the pending entry and resolves it in its Q&A mode:

### Q{N}

- **Category:** {category, e.g., Architecture, Requirements, Security}
- **Impact:** {High|Medium|Low|Required}
- **Status:** Pending
- **Context:** {why — what the calling phase found; surfaced by {calling phase, e.g. /aid-plan work-001}}
- **Suggested:** {answer if inferrable, or —}

The one feedback loop with its own dedicated file is IMPEDIMENT-task-NNN.md — written by Execute to .aid/{work}/ when a task hits a contradiction it cannot resolve within scope:

# Impediment — task-NNN
> Generated by: aid-execute · Status: Open

## Summary
{one sentence — what the agent found that contradicts its instructions}

## Type
wrong-assumption | missing-dependency | architecture-conflict | kb-gap

## Options
{Option A / B / C — each with approach, effort, and risk}

## Recommendation
{which option the agent recommends, and why — the human decides}

---

7. Artifacts Reference

Core Artifacts

Artifact	Location	Produced By	Consumed By	Lifecycle
Knowledge Base (14 standard docs)	.aid/knowledge/	Discover	All phases	Living — updated throughout project
INDEX.md	.aid/knowledge/	Init, Discover, Interview	All phases	Seeded at init; regenerated by Discovery; maintained by Interview
STATE.md (discovery area)	.aid/knowledge/	Init, Discover, Summarize	Discover (resume), all phases	Living — grade, review & summarization history; any phase appends Q&A entries
project-index.md	.aid/generated/	Discover (pre-pass)	Discovery sub-agents	Regenerated each discovery run
REQUIREMENTS.md	.aid/{work}/	Interview (full path)	Specify, Plan	Frozen after approval (rev-tracked)
SPEC.md (work-root)	.aid/{work}/	Interview (lite path)	Execute	Single consolidated spec for lite works
STATE.md (work area)	.aid/{work}/	Interview	All phases for this work	Process tracking
Feature SPEC.md	.aid/{work}/features/{feature}/	Interview + Specify (full path)	Plan, Detail, Execute	Living — Interview writes requirements side, Specify adds technical spec
known-issues.md	.aid/{work}/	Specify (Monitor updates)	Plan, Execute, Deploy, Monitor	Living — created when the first issue is registered
PLAN.md	.aid/{work}/	Plan (full path)	Detail, Deploy	Living — rev-tracked; Detail appends the execution graph
task-NNN.md	.aid/{work}/tasks/	Detail (full path) or Interview (lite path)	Execute	Rev-tracked if amended
IMPEDIMENT-task-NNN.md	.aid/{work}/	Execute	Specify, Detail, Discovery	Closed when resolved
package-NNN-{slug}.md	.aid/{work}/packages/	Deploy	Monitor, stakeholders	One per shipped release package
DEPLOYMENT-STATE.md	.aid/{work}/	Deploy	Deploy (resume)	Living — operation status + history
MONITOR-STATE.md	.aid/{work}/	Monitor	Execute (bugs), Discover (CRs)	Living — observation log across runs
KB-DELTA Q&A entry	.aid/knowledge/STATE.md	aid-housekeep	aid-discover (targeted re-discovery)	Appended by housekeep; resolved by next targeted discovery run

Within Execute, the reviewer produces a structured issue list that canonical/scripts/grade.sh scores; the issues, the grade, and the full review history are recorded in the work-area STATE.md. There is no separate persistent REVIEW.md or TEST-REPORT.md file.

Templates Reference

REQUIREMENTS.md template:

# Requirements

## Change Log
| Date | Change | Source |
|------|--------|--------|

## 1. Objective
## 2. Problem Statement
## 3. Users & Stakeholders
## 4. Scope
### In Scope
### Out of Scope
## 5. Functional Requirements
## 6. Non-Functional Requirements
## 7. Constraints
## 8. Assumptions & Dependencies
## 9. Acceptance Criteria
## 10. Priority

Feature SPEC.md template:

Each feature gets its own SPEC.md on the full path. Interview writes the top half (requirements side). Specify adds the bottom half (technical specification).

# {Feature Title}

## Change Log
| Date | Change | Source |
|------|--------|--------|

## Source
- REQUIREMENTS.md §5.{n}

## Description
{Stakeholder perspective — what the feature does, not how.}

## User Stories
- As a {user}, I want to {action} so that {benefit}

## Priority
{Must / Should / Could}

## Acceptance Criteria
- [ ] Given {precondition}, when {action}, then {expected result}

---

## Technical Specification
{Added by /aid-specify — sections determined by KB, codebase, and developer discussion.}

### Data Model
### Feature Flow
### Layers & Components
{Plus conditional sections as activated}

PLAN.md template:

# Plan — {Work Name}

## Deliverables

### delivery-001: {Name}
- **What it delivers:** {user-facing value}
- **Features:** feature-001-{name}, feature-003-{name}
- **Depends on:** — (foundation)
- **Priority:** Must

### delivery-002: {Name}
- **What it delivers:** {user-facing value}
- **Features:** feature-002-{name}
- **Depends on:** delivery-001
- **Priority:** Must

## Cross-Cutting Risks
| # | Risk | Impact | Mitigation |
|---|------|--------|------------|
*(Omit if no cross-cutting risks exist.)*

## Deferred
| Feature | Reason | Revisit When |
|---------|--------|--------------|
*(Omit if all features included.)*

## Execution Graph
*(Appended by Detail — per-delivery dependency and parallel-wave tables.)*

## Revision History
| Rev | Date | Source | Description |
|-----|------|--------|-------------|

task-NNN.md template:

Detail produces one task-NNN.md per task and appends the execution graph (waves, precedence) to PLAN.md — there is no separate DETAIL.md artifact.

# task-NNN: {Title}

**Type:** RESEARCH | DESIGN | IMPLEMENT | TEST | DOCUMENT | MIGRATE | REFACTOR | CONFIGURE

**Source:** feature-NNN-{name} → delivery-NNN

**Depends on:** task-NNN [, task-NNN] | — (none)

**Scope:**
- {what to produce or modify — depends on Type}

**Acceptance Criteria:**
- [ ] Criterion 1 — concrete, testable
- [ ] Criterion 2 — concrete, testable

Review record format:

Inside Execute, the reviewer produces a structured issue list. Each issue is tagged by severity ([CRITICAL] / [HIGH] / [MEDIUM] / [LOW] / [MINOR]) and source ([CODE] / [TASK] / [SPEC] / [KB]). The reviewer does not assign a letter grade — the grade is computed deterministically by canonical/scripts/grade.sh from the bracketed severity tags (worst severity dominates; count within that tier sets the + / none / - modifier). See canonical/templates/grading-rubric.md for the full table.

## Current Review

**Cycle:** {n}
**Grade:** {computed by grade.sh}

### Issues

| # | Severity | Source | Description |
|---|----------|--------|-------------|
| 1 | [CRITICAL] | [CODE] | ... |
| 2 | [MEDIUM] | [TASK] | ... |

## Review History

| Cycle | Grade | Issues | Date |
|-------|-------|--------|------|

MONITOR-STATE.md template:

# Monitor State

## Last Run
**Date:** {date} | **Window:** {start} → {end} | **Findings:** {count}

## Active Findings
### Finding {id}: {Title}
**Classification:** BUG | Change Request | Infrastructure | No Action
**Severity:** Critical | High | Medium | Low
**Evidence:** {concrete data — error counts, latency, ticket clusters}
**Correlation:** {related events — e.g., "error spike 23 min after the package-007-auth deploy"}
**Root cause:** {for bugs — trace from symptom to the specific fault}
**Routing:** BUG → aid-interview (LITE-BUG-FIX) · Change Request → aid-interview · Infrastructure → ops escalation · No Action → closed with justification

## Resolved Findings
| Finding | Classification | Resolution | Date |
|---------|----------------|------------|------|

---

8. Case Studies

Three real projects, three different paths through the pipeline.

Case study	Path used	Key phases	Key insight
VivaVoz Desktop App	Greenfield · full path	Interview → Specify → Plan → Detail → Execute	Two-level planning (Plan = strategy, Detail = tactics) prevented planning sessions from bogging down in micro-decisions before macro-structure was settled
Brownfield Enterprise Java	Brownfield · full path	Discover → Interview → Specify	Without Discovery, an agent dropped into a 21 GB Java codebase hallucinates; the KB gave agents context to work within the existing OSGi architecture rather than against it
Zac Pipeline	Brownfield · full path + lite path	All phases; Monitor → LITE-BUG-FIX → Execute for post-launch fixes	After the initial build, individual brand-specific issues were handled as LITE-BUG-FIX works — 20–30 minutes end to end vs. the multi-day cycle a full path would require

Greenfield — VivaVoz Desktop Application

Context: MVVM desktop app (Avalonia/.NET) for voice recording and transcription. Built from scratch.

How AID applied:

• Discovery: Skipped (greenfield). Minimal KB populated during interview.
• Interview: Full requirements gathering. User personas, feature priority, platform constraints. TRIAGE routed to full path — multiple features, multi-week scope.
• Specify: Detailed architecture decisions per feature: MVVM pattern, SQLite storage, Whisper integration. Agent proposed based on community conventions, not open-ended prompting.
• Plan: Sequenced the roadmap — MVP (core recording), v2 (transcription), v3 (export) — into ordered, independently shippable deliveries.
• Detail: Decomposed each delivery into task specs, each carrying explicit C# interface contracts.
• Execute: Agent-per-task execution with the built-in review loop — parallel work on independent features, a full unit + E2E test suite graded against the rubric.
• Deploy: Incremental deliveries. Each delivery merged independently.

What worked: The two-level planning (Plan → Detail) meant strategic decisions were separated from tactical decomposition. The plan defined “what goes in MVP” while detail defined “how to build each piece.” Without this separation, planning sessions routinely get bogged down debating implementation micro-decisions before the macro-structure is settled.

What would have been faster with lite path: Individual bug fixes discovered during Execute were routed through LITE-BUG-FIX — a diagnosis from Monitor plus a single IMPLEMENT task, no re-spec, no re-plan.

Brownfield Enterprise Java

Context: 21 GB enterprise Java codebase (Maven/Tycho, OSGi bundles). Client needed a developer to understand and extend the search engine.

How AID applied:

• Discovery: Full codebase analysis. Module listing across hundreds of packages. Architecture report covering 15 sections. The KB captured: OSGi bundle manifest structure, search indexing pattern, key extension points, naming conventions, and the deployment model (target platform).
• Interview: Targeted — client explained business context, search requirements. Short interview because Discovery pre-filled all technical context. The agent’s questions came with suggested answers: “Based on architecture.md: the search service extends org.eclipse.search.ui.ISearchPage. Does the new feature plug in at this extension point? [Y/N/custom]”
• Specify: Spec grounded in the KB. Referenced actual package names, existing interfaces, OSGi service bindings.

Key insight: Without Discovery, an agent dropped into this codebase would have hallucinated. The KB gave agents the context they needed to work within the existing architecture rather than against it. The Specify session took 40 minutes; the equivalent effort without a KB would have been a multi-day exploration that still wouldn’t have caught the OSGi service lifecycle constraints that the KB surfaced in its first section.

Operational Automation — Zac Pipeline

Context: E-commerce advertising pipeline. Pull data from Meta/Google/Klaviyo, validate, process with specialist AI agents, grade output quality.

How AID applied:

• Interview: One question at a time. “What are your brands?” → “What platforms?” → “What does a good report look like?” → “What data don’t you agree with?” That last question discovered a timezone bug in the existing data aggregation — before a line of spec was written.
• Specify: Pipeline spec with data flow, agent roles, grading criteria.
• Execute: Multi-agent orchestration — 4 specialist agents + orchestrator + executive-summary generator — validated against a domain-specific quality gate (Grade A): source match (1% tolerance), traceability, cross-agent consistency.
• Monitor: Watches quality-gate results across brands. When a report fails, Monitor classifies it — a data-processing bug (short path: LITE-BUG-FIX → Execute) or a source-format change (full cycle: new requirements → new spec). Nothing falls through.

The lite path in practice: After the initial build, individual brand-specific issues were handled as LITE-BUG-FIX works — each a single IMPLEMENT task taking 20-30 minutes end to end, vs. the multi-day cycle the full path would require.

---

9. Comparison with SDD

Where We Overlap

Both AID and SDD:

• Use specifications as the central development artifact.
• Employ AI agents for code implementation.
• Rely on tests as contracts between spec and code.
• Require human review of agent output.
• Use markdown as the specification format.

Where We Diverge

flowchart TB
    classDef sdd  fill:#1E3A8A,stroke:#1E3A8A,color:#ffffff
    classDef aid_prep  fill:#1E3A8A,stroke:#1E3A8A,color:#ffffff
    classDef aid_def   fill:#6D28D9,stroke:#6D28D9,color:#ffffff
    classDef aid_map   fill:#0F766E,stroke:#0F766E,color:#ffffff
    classDef aid_exe   fill:#166534,stroke:#166534,color:#ffffff
    classDef aid_del   fill:#C2410C,stroke:#C2410C,color:#ffffff,stroke-dasharray:5 4
    classDef kb        fill:#0B1F3A,stroke:#0B1F3A,color:#ffffff

    subgraph SDD["Spec-Driven Development"]
        direction TB
        S1["Write Spec"]:::sdd
        S2["AI Agent<br/>implements code"]:::sdd
        S3["Human review"]:::sdd
        S4["Ship"]:::sdd
        S1 --> S2 --> S3 --> S4
        S3 -. "re-spec from scratch" .-> S1
    end

    subgraph AID["AI-Assisted Development"]
        direction TB
        A0["aid-config<br/>(one-time setup)"]:::kb
        A1["1 · aid-discover<br/>(brownfield)"]:::aid_prep
        A2["2 · aid-interview<br/>(requirements)"]:::aid_def
        A3["3 · aid-specify<br/>(formal spec)"]:::aid_def
        A4["4 · aid-plan<br/>(roadmap)"]:::aid_map
        A5["5 · aid-detail<br/>(task breakdown)"]:::aid_map
        A6["6 · aid-execute<br/>(build + review loop)"]:::aid_exe
        KB[("Knowledge Base<br/>(persists across sessions)")]:::kb
        Dep["aid-deploy<br/>(optional)"]:::aid_del
        Mon["aid-monitor<br/>(optional)"]:::aid_del

        A0 --> A1 --> A2 --> A3 --> A4 --> A5 --> A6
        A6 -. "on demand" .-> Dep
        A6 -. "on demand" .-> Mon
        Mon -. "bug fix" .-> A2
        Mon -. "change request" .-> A2

        A1 <--> KB
        A2 <--> KB
        A3 <--> KB
        A4 <--> KB
        A5 <--> KB
        A6 <--> KB
    end

Left: SDD starts from a written spec and loops back to re-spec from scratch on changes. Right: AID begins with Discovery and a persistent Knowledge Base, uses two-level planning, eleven formal feedback loops, and optional Deliver skills (Deploy, Monitor) that feed post-production changes back into the pipeline.

Dimension	SDD	AID
Starting point	A spec	Understanding (Discovery)
Brownfield support	Gap acknowledged	First-class Discovery phase with a 14-document KB (project-configurable)
Spec philosophy	Spec is source of truth	Spec is hypothesis — revised by formal protocol
Requirements	Assumed to exist	Gathered through adaptive interview
Planning depth	Single spec	Two-level: Plan (strategy) → Detail (tactics)
Feedback loops	Rebuild spec from scratch	Eleven formal loops (8 development + 2 post-production + 1 cross-cutting)
Testing	Not addressed as separate phase	TEST is a first-class task type inside Execute; Deploy runs a full final-verification gate
Quality gates	Generic conformance tests	One universal severity rubric (deterministic — computed, not judged) plus project-defined quality checks
Agent model	One agent per spec	9 specialist agents across 3 tiers; reviewer tier ≥ executor tier invariant
Delivery model	Spec → code → done	Discover → specify → plan → detail → execute → optional deploy/monitor
Memory	Stateless	Knowledge Base persists across sessions
Post-delivery	Not addressed	Monitor → Interview (bugs via LITE-BUG-FIX + CRs)
Scope	Code generation	Full lifecycle: discovery through production maintenance
Human role	Spec writer, reviewer	Co-pilot across all phases
Scale options	One path	Full path + lite path (TRIAGE-routed) for small work; recipes for recurring patterns

The Core Argument

SDD says: “Write better specs, get better code.”

AID says: “Understand the system first. Then write specs grounded in that understanding. Then plan the roadmap. Then detail the execution. Then build, review, and test it inside Execute’s graded loop. Then ship when the delivery model requires it. And when any of that reveals you were wrong — revise formally, don’t hack around it.”

SDD is not wrong. It is incomplete. AID is SDD + Discovery + Feedback Loops + Two-Level Planning + a Built-in Review Loop + Institutional Memory + Production Lifecycle + a Lite Path for small work.

---

10. Adoption Guide

Getting AID onto Your Machine

AID installs in one command. Pick the channel that fits your environment:

# Linux / macOS
curl -fsSL https://raw.githubusercontent.com/AndreVianna/aid-methodology/master/install.sh | bash

# Windows PowerShell
irm https://raw.githubusercontent.com/AndreVianna/aid-methodology/master/install.ps1 | iex

# npm (Node >=18)
npm i -g aid-installer

# PyPI (Python >=3.8)
pipx install aid-installer

Offline / air-gapped environments can download a profile tarball from the GitHub Releases page and install with aid add <tool> --from-bundle <file.tar.gz> — no network required after the initial download. All channels deliver the same persistent aid CLI; once bootstrapped, use aid add <tool> inside any project.

Starting with an Existing Project (Brownfield)

1. Run /aid-config to initialize the workspace (once per project).
2. Run /aid-discover on the codebase. This produces your Knowledge Base.
3. Review the KB. Fill gaps with human knowledge during the Q&A state.
4. For the next feature request, run /aid-interview. TRIAGE will route to full or lite path.
5. Full path: Run /aid-specify to add a technical spec to each feature. Run /aid-plan to sequence features into deliveries. Run /aid-detail to decompose deliveries into typed tasks. Run /aid-execute for each task.
6. Lite path: /aid-interview completes the condensed flow and hands off task(s) directly to /aid-execute.
7. Optionally run /aid-deploy to verify, package, and ship; then /aid-monitor once the delivery is in production.
8. Run /aid-housekeep periodically to reconcile KB drift without a full discovery cycle.

Starting a New Project (Greenfield)

1. Run /aid-config, then /aid-interview. TRIAGE will assess scope; greenfield projects with multiple features will route to full path.
2. A minimal KB is populated from interview answers during the full-path flow.
3. Full path: Run /aid-specify → /aid-plan → /aid-detail → /aid-execute.
4. Lite path (small greenfield change): /aid-interview completes condensed flow; run /aid-execute.
5. The KB grows organically as the codebase develops. Run /aid-discover once meaningful code exists to backfill discovery.

Using the Lite Path and Recipes

For small, well-scoped changes — bug fixes, doc updates, refactors, small new features:

1. Run /aid-interview. Describe the work in your own words; TRIAGE infers the work-type and the best-matching recipe and confirms, then routes to the appropriate LITE sub-path.
2. The condensed interview produces a work-root SPEC.md and task(s) directly.
3. Run /aid-execute.

For recurring patterns:

1. Describe the work; TRIAGE matches it to a recipe by reading each recipe’s summary: (e.g. add-api-endpoint, change-ui-component, fix-regression). Confirm the match or pick a different recipe.
2. Fill the recipe’s {{slot}} placeholders.
3. parse-recipe.sh produces the SPEC.md and task(s). Run /aid-execute.

Adopting Incrementally

You do not need to use all six phases from day one — though /aid-config always runs once first:

Starting point	Add-on	What you gain
Detail + Execute	—	Formalized task decomposition and reviewed execution — Execute codes, reviews, and grades in one loop
+ Plan	—	Separate delivery strategy from tactical decomposition with two-level planning
+ Discover	—	For brownfield projects, build the Knowledge Base before specifying anything
+ Interview + Specify	—	For client engagements, gather requirements through the adaptive interview, then refine each feature technically
+ Deploy + Monitor	—	Once shipping regularly, formalize delivery and production monitoring
Full pipeline	All phases	Sequenced phases with feedback loops — the complete AID experience

Anti-Patterns

• Skipping Discovery on brownfield. Agents will hallucinate about your architecture. The 40-minute Discovery investment eliminates hours of review-reject-redo cycles.
• Treating the spec as sacred. It is a hypothesis. Revise it when implementation proves it wrong — formally, with the revision trail.
• Ignoring impediments. If an agent reports an impediment, stop and decide. Do not let it work around the problem. The impediment file is not bureaucracy — it is the agent saying “I found a contradiction and I am not going to silently paper over it.”
• Bypassing Execute’s review loop. “The tests pass” is not enough. Execute dispatches a separate adversarial reviewer that catches spec, architecture, and convention issues tests cannot detect. The deterministic grade gate is what makes that bite. Do not lower the minimum grade to dodge it.
• Not maintaining the KB. A stale KB is worse than no KB. Every phase should update it when new knowledge is acquired. Run /aid-housekeep periodically to catch drift.
• Sending agents blind. Including TASK + SPEC without the KB INDEX means the agent does not know what context exists. It will guess instead of look. Always include INDEX.md.
• Auto-advancing between phases. The human approves every transition. That is the checkpoint that keeps the methodology safe.
• Using the full path for every change. A two-line bug fix does not need Specify, Plan, and Detail. TRIAGE exists to route proportionately. Trust it.

---

AID V3.2 — June 2026 Built from practice, not theory. Every phase, every template, every feedback loop was born from real projects.
